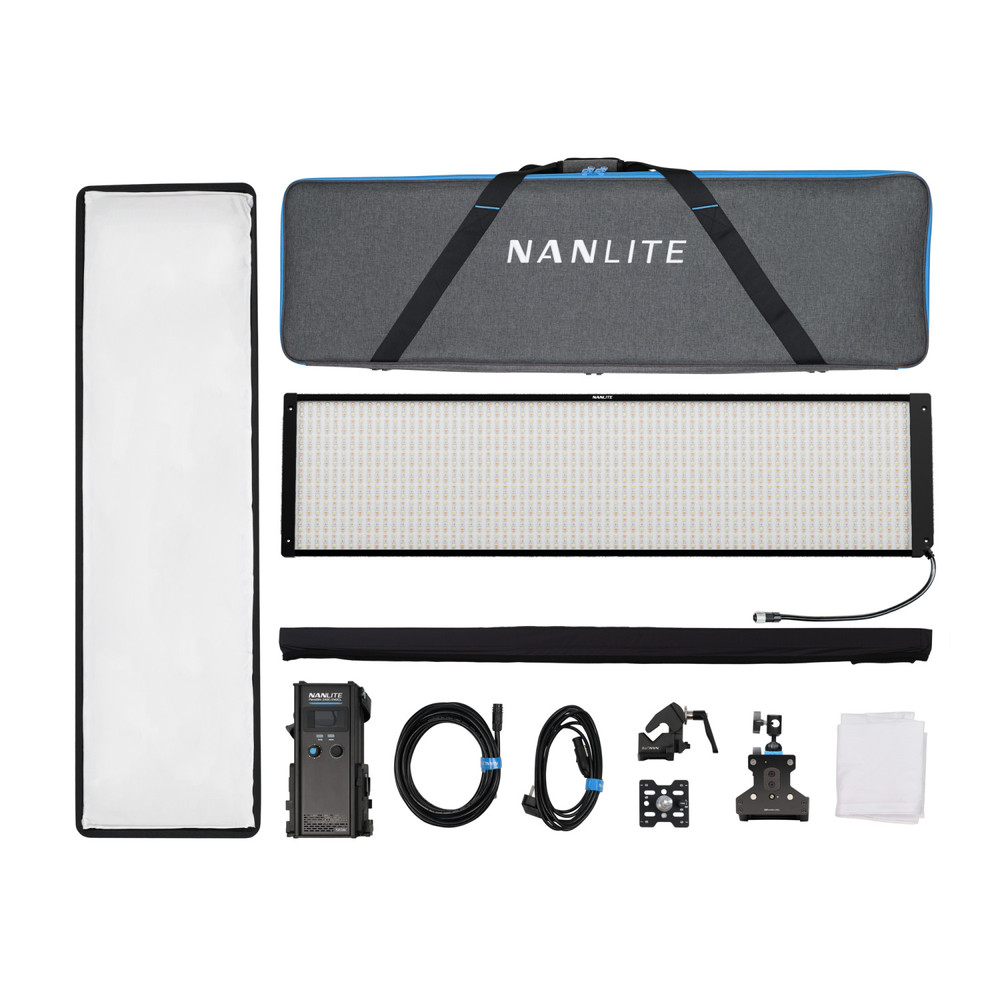

Item Includes
PavoSlim 240CL 4×1 LED Panel
Control Unit with 2 V-Mount Plates
Reinforced Swivel Holder with Handle
Baby-Pin Holder
Quick-Release Clamp
DC Connection Cable 8.5′ (2.6m)
AC Power Cable 14.7′ (4.5m)
Pop-Up Softbox
2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser)
Egg Crate Grid
Padded Carrying Bag
User Manual
2-Year Limited Warranty (Extend to 3-Year Limited With Registration on NanliteUS.com)
The Nanlite PavoSlim 240CL is a lightweight 4×1 RGBWW LED panel light that’s only 0.92” (2.35cm) thick and provides an impressive output of 21030 lux, 1954 fc @1M 5600K, 0–100% dimming, a bi-color CCT range of 2700K–7500K with G/M adjustment of +/- 150, built-in CRMX LumenRadio, power through AC, V-Mount battery, or external 48V DC, and includes a Control Unit, a durable stand clamp, a “pop-up” softbox, 2 sets of diffusion, an eggcrate grid, a swivel mount, a baby-pin mount, and a padded carrying case that safely holds everything. It’s covered by a 2-year warranty that extends to 3 years with online registration, and it’s stocked, supported, and serviced by our responsive team in the USA.

THIN YET LARGE SOURCE
PavoSlim 240CL is a sizable 4×1 light source, and even though its large size provides lots of coverage, its metal body is only 0.92” (2.35cm) thick, which means you can easily mount it close to the ceiling and in confined spaces, and the panel weighs just 7.98 lbs.

EFFICIENT & FAST
With its included “pop-up” softbox, PavoSlim 240CL sets up quickly and can be packed away just as fast. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.

OPTICAL BOOST
PavoSlim 240CL features an advanced optical system that’s capable of outputting a sizable amount of light. In addition to bi-color and daylight-balanced output, PavoSlim 240CL provides eye-catching RGB colors and 151 gel filter presets.

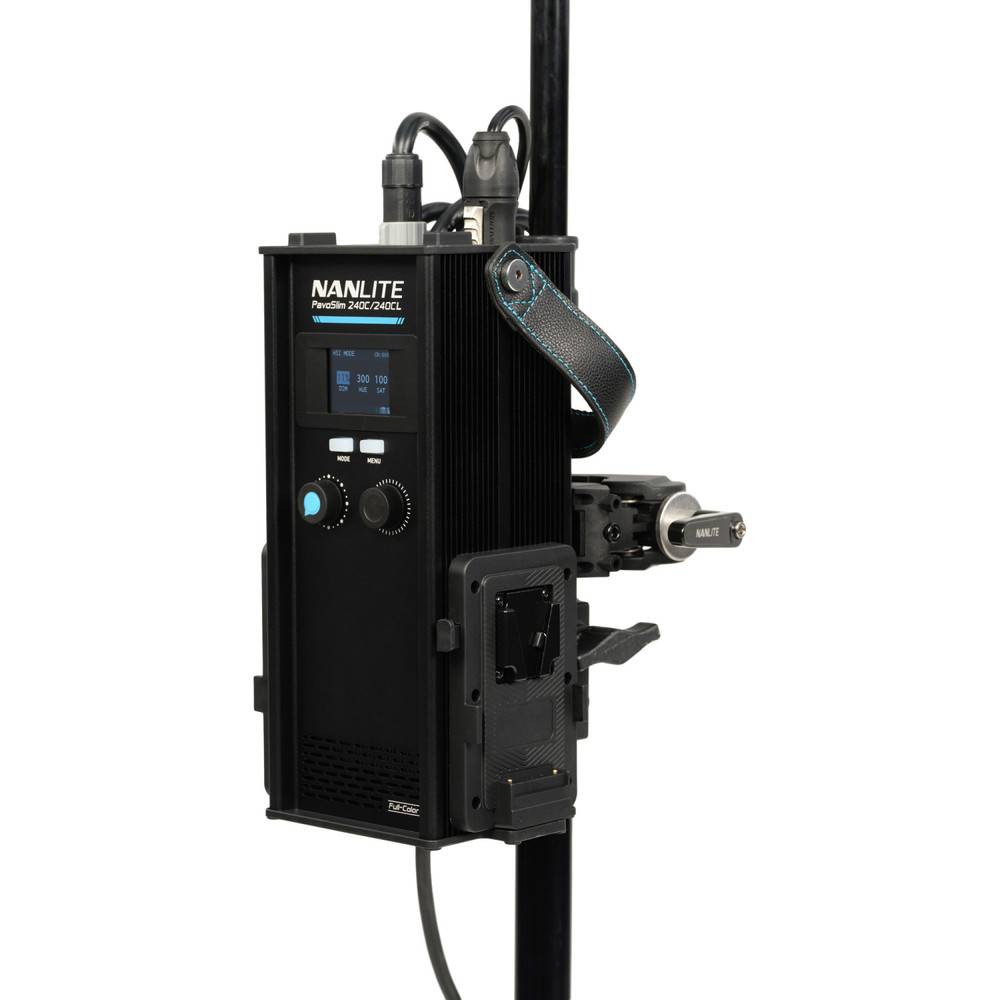

COMPLETE CONTROL
The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, built-in CRMX LumenRadio receiver, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

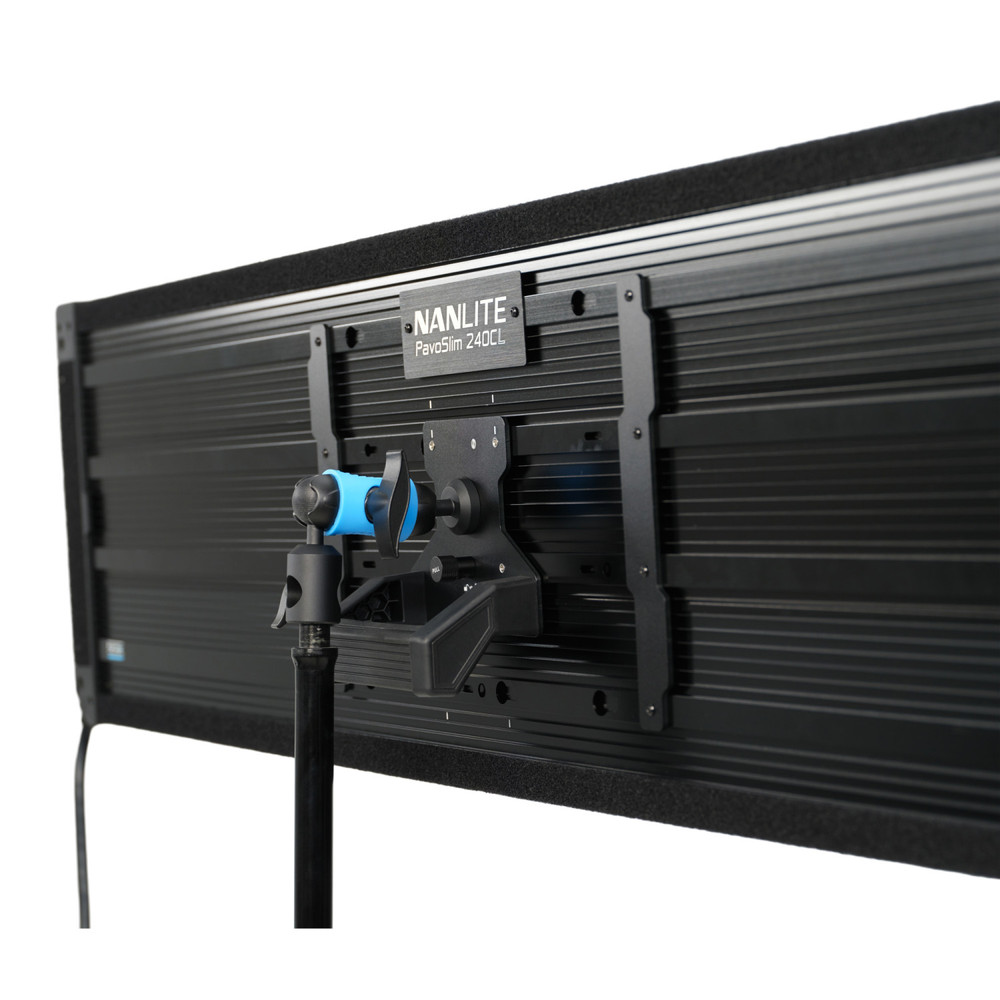

MULTIPLE MOUNTS
The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The 2 included mounts slide into the plates and lock securely. One of the mounts has a fixed baby-pin, the other has two ball joints that can be swiveled and locked in a wide range of vertical and upward angles.

EXPANDABLE SYSTEM
A coupling accessory is available (sold separately) that lets you fuse two or four PavoSlim 240CL panels together to create a larger 2×4 or 4×4 light source with a softbox and grid. The catalog number of this accessory is: ASMPCPS240CLKIT. The corners of the light have 1/4″-20 mounting points for the separately available AS-MBA-1/4-SET magnetic mounting adapters.

SOFTBOX & CASE
The slender padded carrying case has room for all the included accessories, like the pop-up softbox, grid, 1.5 stop, and 2.5 stop diffusers (which also set up and break down in seconds). The case won’t weigh you down and because it’s half the size of the fixture, it won’t consume unnecessary space in transit or storage.

FLICKER-FREE ACCURACY
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 240CL, you can always have confidence in your colors: SSI 3200K 84, SSI 5600K 74, CRI average 96, TLCI average 97, TM-30 Rf average 94, and TM-30 Rg average 100.

DESIGNED AND MADE AT NANLITE
One important distinction that makes Nanlite stand out is that we design, build, and test every single light in our own facility. This gives us the best possible control over Quality Assurance. We’re a family-owned business that incorporates environmentally friendly practices into our work and we’re filled with people who are passionate about image making and creativity. Join us!
